Cara Kerja Logika OR plus

Cara kerja gerbang LOGIC OR + sama seperti gerbang logika OR biasa, yaitu akan mengaktifkan output HIGH (ON) jika ada minimal satu input saja yang bernilai HIGH (ON). Keunggulan dari modul LOGIC OR + di Arduflow adalah jumlah pin input-nya dapat ditambah (+ Input) atau dikurangi (- Remove) sesuai kebutuhan sistem (bisa 3 input, 4 input, atau lebih).

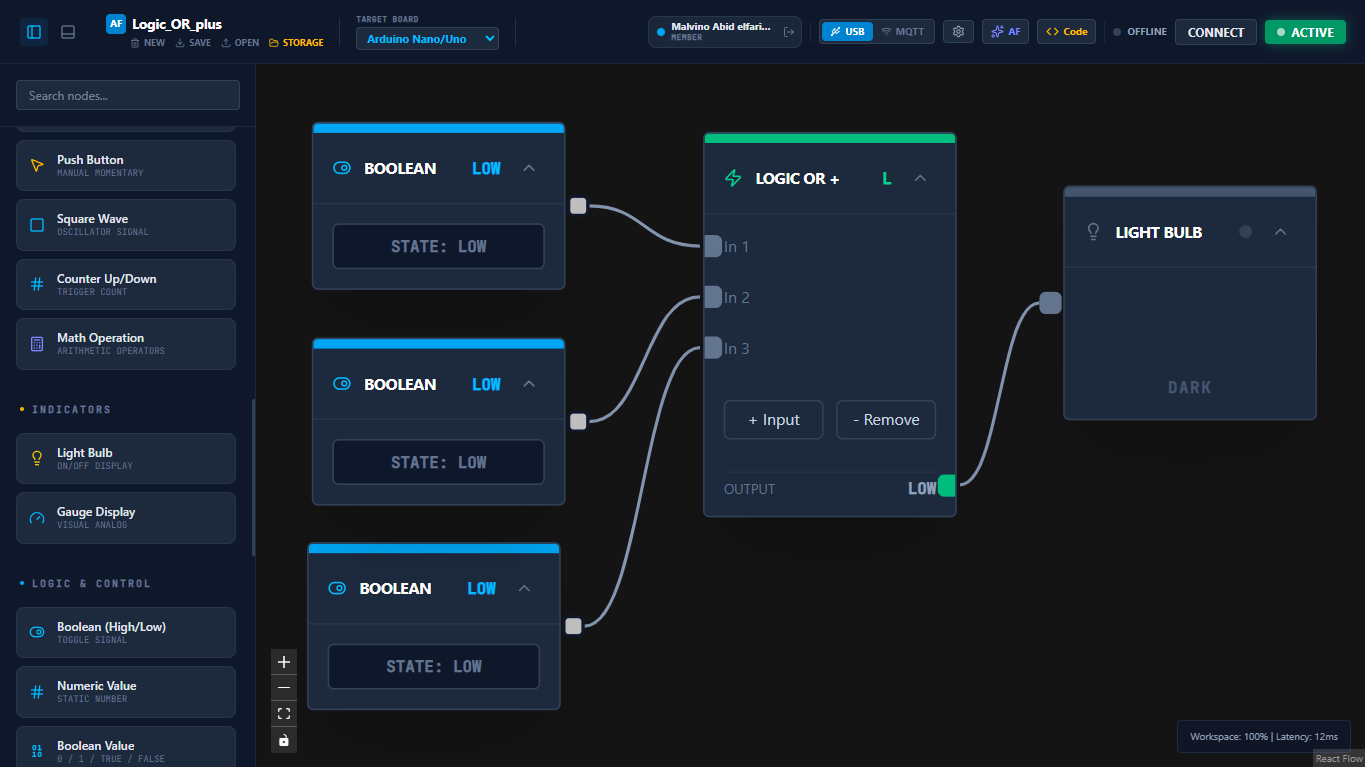

Contoh Kasus pada Rangkaian Arduflow: Pada simulasi di atas, terdapat 3 sakelar Boolean yang terhubung ke pin In 1, In 2, dan In 3 pada blok LOGIC OR +, dengan output terhubung ke Light Bulb.

Jika ketiga sakelar berada pada kondisi LOW, maka output bernilai LOW dan lampu tetap mati (DARK).
Jika satu, dua, atau ketiga sakelar diaktifkan menjadi HIGH, sinyal output akan otomatis menjadi HIGH dan menyalakan lampu (Light Bulb).

ARDUFLOW CODE SNIPPET

{
  "name": "Logic_OR_plus",
  "board": "nano",
  "nodes": [
    {
      "id": "constant-1781585648368",
      "type": "constant",
      "position": {
        "x": 214.6413488454183,
        "y": -6.0300079856558
      },
      "data": {
        "value": false,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 106
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "bulb-1781585653000",
      "type": "bulb",
      "position": {
        "x": 688.4409384784087,
        "y": 34.188511822332345
      },
      "data": {
        "value": false,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 148
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "constant-1781585813552",
      "type": "constant",
      "position": {
        "x": 214.6413488454183,
        "y": 129.96999201434411
      },
      "data": {
        "value": false,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 106
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "logicOrMulti-1781585843311",
      "type": "logicOrMulti",
      "position": {
        "x": 461.34780228043246,
        "y": 0.3503835546593592
      },
      "data": {
        "value": false,
        "inputCount": 3,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 243
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "constant-1781585865496",
      "type": "constant",
      "position": {
        "x": 211.64134884541835,
        "y": 258.96999201434403
      },
      "data": {
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 106
      },
      "selected": true,
      "dragging": false
    }
  ],
  "edges": [
    {
      "source": "constant-1781585648368",
      "target": "logicOrMulti-1781585843311",
      "targetHandle": "in1",
      "id": "xy-edge__constant-1781585648368-logicOrMulti-1781585843311in1"
    },
    {
      "source": "constant-1781585813552",
      "target": "logicOrMulti-1781585843311",
      "targetHandle": "in2",
      "id": "xy-edge__constant-1781585813552-logicOrMulti-1781585843311in2"
    },
    {
      "source": "logicOrMulti-1781585843311",
      "target": "bulb-1781585653000",
      "id": "xy-edge__logicOrMulti-1781585843311-bulb-1781585653000"
    },
    {
      "source": "constant-1781585865496",
      "target": "logicOrMulti-1781585843311",
      "targetHandle": "in3",
      "id": "xy-edge__constant-1781585865496-logicOrMulti-1781585843311in3"
    }
  ]
}
