IF THEN ELSE tergolong dalam kategori Logic & Control yang berfungsi sebagai percabangan kondisi (pengambil keputusan). Modul ini memilih nilai output yang akan diteruskan berdasarkan status pada pin kondisi (Cond).

Prinsip Kerja:

Jika kondisi (Cond) bernilai HIGH / TRUE (1), maka blok akan meneruskan nilai dari jalur True ke Output.
Jika kondisi (Cond) bernilai LOW / FALSE (0), maka blok akan meneruskan nilai dari jalur False ke Output.

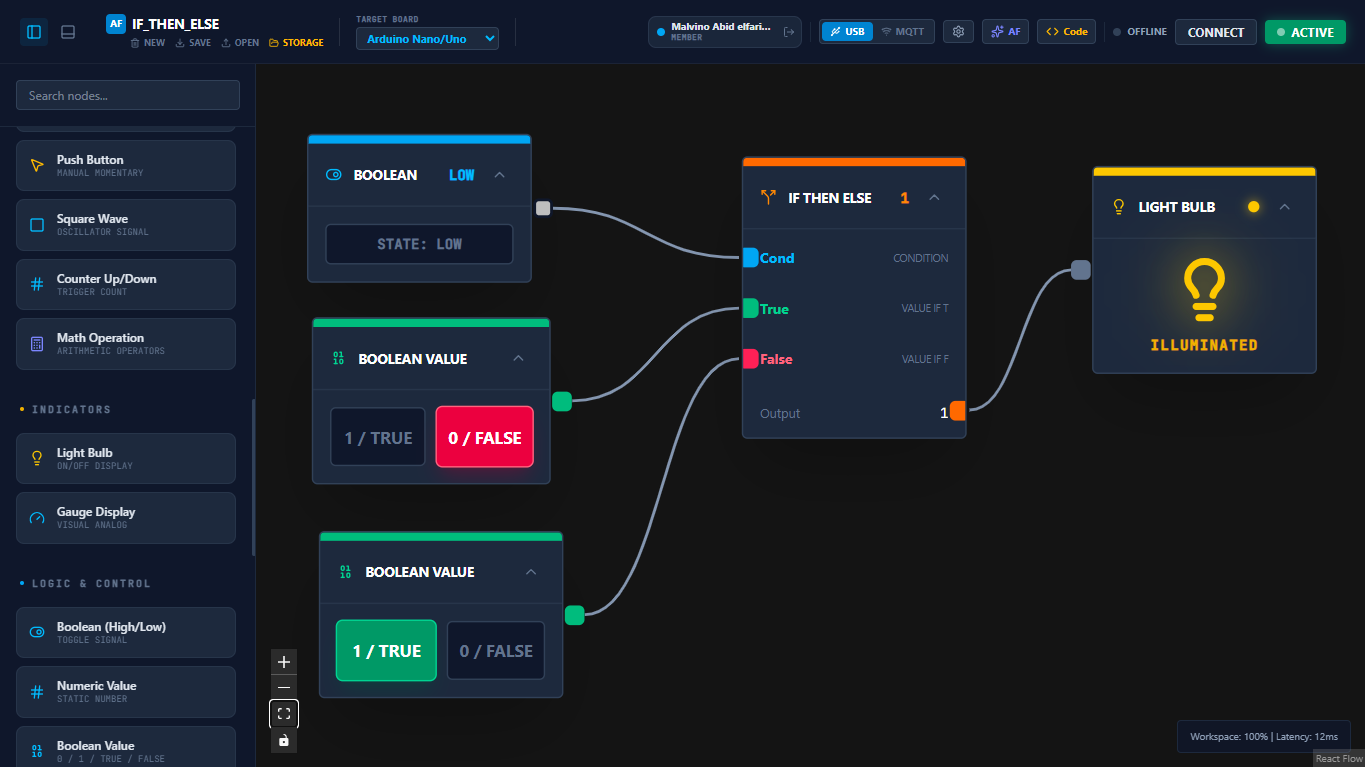

Contoh Kasus pada Rangkaian Arduflow: Pada gambar di atas:

Pin Cond menerima sinyal LOW (0) dari sakelar Boolean atas.
Karena kondisinya LOW (FALSE), blok memilih jalur False (bernilai 1 / TRUE) untuk dikirim ke Output.
Hasilnya, sinyal bernilai 1 menerus ke Light Bulb sehingga lampu menyala (ILLUMINATED).

ARDUFLOW CODE SNIPPET

{
  "name": "IF_THEN_ELSE",
  "board": "nano",
  "nodes": [
    {
      "id": "bulb-1781585653000",
      "type": "bulb",
      "position": {
        "x": 688.4409384784087,
        "y": 34.188511822332345
      },
      "data": {
        "value": 1,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 148
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "ifElse-1781586025049",
      "type": "ifElse",
      "position": {
        "x": 439.180279277073,
        "y": 27.36237270906375
      },
      "data": {
        "value": 1,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 201
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "constant-1781586068116",
      "type": "constant",
      "position": {
        "x": 129.83626477802926,
        "y": 11.319615294952413
      },
      "data": {
        "value": false,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 106
      },
      "selected": true,
      "dragging": false
    },
    {
      "id": "boolean-1781586092082",
      "type": "boolean",
      "position": {
        "x": 133.25215733285185,
        "y": 141.79791429747135
      },
      "data": {
        "value": 0,
        "pin": "0"
      },
      "measured": {
        "width": 176,
        "height": 119
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "boolean-1781586102105",
      "type": "boolean",
      "position": {
        "x": 138.25215733285188,
        "y": 293.92291429747127
      },
      "data": {
        "value": 1,
        "pin": "0"
      },
      "measured": {
        "width": 180,
        "height": 119
      },
      "selected": false,
      "dragging": false
    }
  ],
  "edges": [
    {
      "source": "ifElse-1781586025049",
      "target": "bulb-1781585653000",
      "id": "xy-edge__ifElse-1781586025049-bulb-1781585653000"
    },
    {
      "source": "constant-1781586068116",
      "target": "ifElse-1781586025049",
      "targetHandle": "condition",
      "id": "xy-edge__constant-1781586068116-ifElse-1781586025049condition"
    },
    {
      "source": "boolean-1781586092082",
      "target": "ifElse-1781586025049",
      "targetHandle": "trueVal",
      "id": "xy-edge__boolean-1781586092082-ifElse-1781586025049trueVal"
    },
    {
      "source": "boolean-1781586102105",
      "target": "ifElse-1781586025049",
      "targetHandle": "falseVal",
      "id": "xy-edge__boolean-1781586102105-ifElse-1781586025049falseVal"
    }
  ]
}

SIAP MENCOBA MATERI INI?

Buka Arduflow IDE sekarang dan implementasikan logika program di atas tanpa ribet!
