Gerbang Logika AND - Arduflow LMS

Cara kerja gerbang logika AND adalah menghasilkan keluaran (output) 1 hanya jika semua masukan (input) bernilai 1. Jika ada salah satu input yang bernilai 0, maka output akan bernilai 0.

Prinsip Dasar dan Rumus

Konsep utama: Mirip dengan perkalian matematika (1 × 1 = 1, selain itu 0).

Ekspresi Boolean: Y = A ⋅ B atau Y = AB (dibaca: Y sama dengan A AND B).

Input: Membutuhkan minimal dua atau lebih input biner (0 atau 1).

Output: Hanya satu keluaran biner.

Tabel Kebenaran (Truth Table)

Berdasarkan Gerbang Logika AND dari ScienceDirect, kombinasi input dan output gerbang AND dengan dua input (A dan B) adalah sebagai berikut:

Input A	Input B	Output (Y)
0	0	0
0	1	0
1	0	0
1	1	1

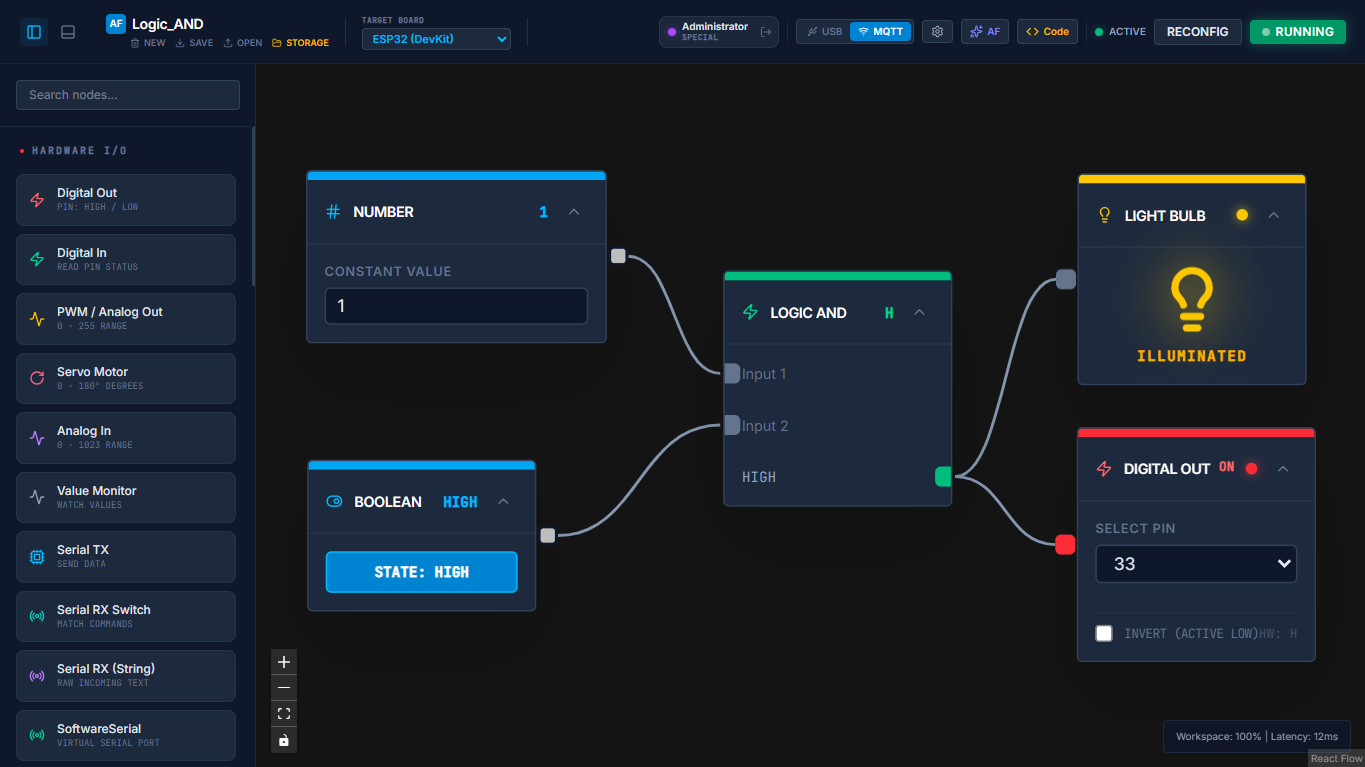

ARDUFLOW CODE SNIPPET

{
  "name": "Logic_AND",
  "board": "nano",
  "nodes": [
    {
      "id": "logicAnd-1781585618778",
      "type": "logicAnd",
      "position": {
        "x": 436.88831653970436,
        "y": -10.875178180352066
      },
      "data": {
        "value": true,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 165
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "number-1781585625392",
      "type": "number",
      "position": {
        "x": 145.71814311110114,
        "y": -80.9011219002918
      },
      "data": {
        "value": 1,
        "pin": "0"
      },
      "measured": {
        "width": 210,
        "height": 121
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "constant-1781585648368",
      "type": "constant",
      "position": {
        "x": 149.64134884541835,
        "y": 75.96999201434414
      },
      "data": {
        "value": true,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 106
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "bulb-1781585653000",
      "type": "bulb",
      "position": {
        "x": 668.4409384784087,
        "y": -3.8114881776676555
      },
      "data": {
        "value": true,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 148
      },
      "selected": false,
      "dragging": false
    }
  ],
  "edges": [
    {
      "source": "number-1781585625392",
      "target": "logicAnd-1781585618778",
      "targetHandle": "in1",
      "id": "xy-edge__number-1781585625392-logicAnd-1781585618778in1"
    },
    {
      "source": "constant-1781585648368",
      "target": "logicAnd-1781585618778",
      "targetHandle": "in2",
      "id": "xy-edge__constant-1781585648368-logicAnd-1781585618778in2"
    },
    {
      "source": "logicAnd-1781585618778",
      "target": "bulb-1781585653000",
      "id": "xy-edge__logicAnd-1781585618778-bulb-1781585653000"
    }
  ]
}

SIAP MENCOBA MATERI INI?

Buka Arduflow IDE sekarang dan implementasikan logika program di atas tanpa ribet!
