Kontrol servo dan lampu

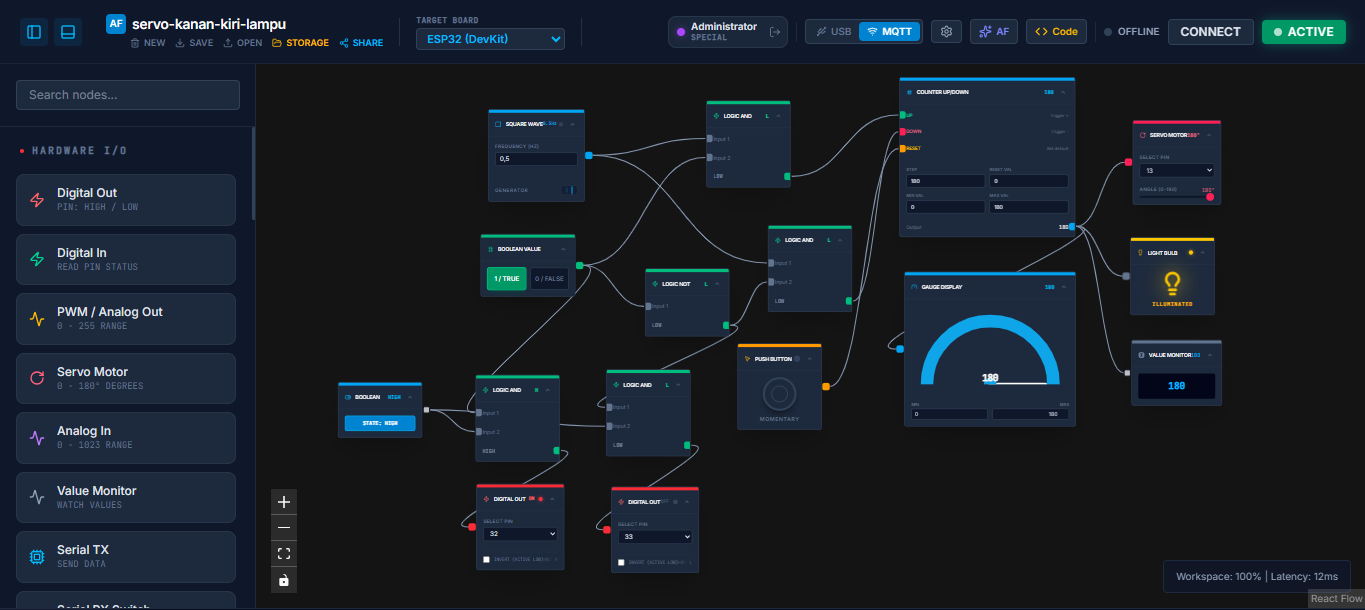

Menggambarkan diagram logika kontrol berbasis ESP32 bernama "servo-kanan-kiri-lampu". Sistem ini dikembangkan dari versi sebelumnya dengan menambahkan fitur kontrol dua indikator lampu fisik via pin digital.

Komponen Tambahan & Perubahan Utama

Target Board: Menggunakan ESP32 DevKit (sebelumnya Arduino Nano).
Ukuran Langkah Counter (step: 180): Berbeda dari versi sebelumnya (45°), step diubah menjadi 180°. Servo akan bergerak langsung secara instant dari 0° ke 180° (sekali jepret/lompat).
Indikator Lampu LED (Digital Out Pin 32 & Pin 33):
- Pin 32 (LED Arah Kanan): Menyala (HIGH) saat sakelar boolean bernilai 1/TRUE.
- Pin 33 (LED Arah Kiri): Menyala (HIGH) saat sakelar boolean bernilai 0/FALSE (melalui gerbang logicNot).
Constant Node (value: true): Memberikan sinyal aktif terus-menerus ke gerbang logika jalur lampu.

Cara Kerja Sistem

Pengendalian Servo & Display:
- Sakelar Boolean = TRUE: Pulsa dari Square Wave memicu pin UP pada Counter, melompatkan posisi servo (Pin 13), Gauge, dan Light Bulb langsung ke 180°.
- Sakelar Boolean = FALSE: Pulsa dialirkan ke pin DOWN, mengembalikan posisi ke 0°.
- Push Button: Berfungsi mereset nilai counter kembali ke titik dasar 0°.
Pengendalian Lampu Indikator:
- Saat sakelar bergerak ke Kanan (TRUE), jalur logika bawah mengaktifkan Digital Out Pin 32 (Lampu Kanan ON) dan mematikan Pin 33.
- Saat sakelar beralih ke Kiri (FALSE), logika kebalikannya berlaku sehingga Digital Out Pin 33 aktif (Lampu Kiri ON) dan Pin 32 mati.

ARDUFLOW CODE SNIPPET

jelaskan = > {
  "name": "servo-kanan-kiri-lampu",
  "board": "esp32",
  "nodes": [
    {
      "id": "bulb-1778401238621",
      "type": "bulb",
      "position": {
        "x": 793.4871240943944,
        "y": 230.7222598872701
      },
      "data": {
        "value": 180,
        "pin": "0",
        "minimized": false
      },
      "measured": {
        "width": 160,
        "height": 148
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "servo-1784567524990",
      "type": "servo",
      "position": {
        "x": 797.9147949457339,
        "y": 8.17791248217543
      },
      "data": {
        "value": 180,
        "pin": "13",
        "lastWritten": 180
      },
      "measured": {
        "width": 168,
        "height": 161
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "counter-1784567531786",
      "type": "counter",
      "position": {
        "x": 354.92924395947404,
        "y": -73.39885845496778
      },
      "data": {
        "value": 180,
        "step": 180,
        "resetVal": 0,
        "minVal": 0,
        "maxVal": 180,
        "pin": "0",
        "lastUp": false,
        "lastDown": false,
        "lastReset": false
      },
      "measured": {
        "width": 334,
        "height": 304
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "squareWave-1784567550529",
      "type": "squareWave",
      "position": {
        "x": -425.64838515651775,
        "y": -12.457182776514372
      },
      "data": {
        "value": 0,
        "pin": "0",
        "frequency": 0.5
      },
      "measured": {
        "width": 183,
        "height": 176
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "logicAnd-1784567627934",
      "type": "logicAnd",
      "position": {
        "x": -11.619241423633056,
        "y": -28.704655494110973
      },
      "data": {
        "value": false,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 165
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "boolean-1784567643246",
      "type": "boolean",
      "position": {
        "x": -440.1753827651426,
        "y": 224.51032514053523
      },
      "data": {
        "value": 1,
        "pin": "0",
        "disabled": false
      },
      "measured": {
        "width": 180,
        "height": 119
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "logicAnd-1784567652206",
      "type": "logicAnd",
      "position": {
        "x": 105.27692553771392,
        "y": 207.7272045536731
      },
      "data": {
        "value": false,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 165
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "logicNot-1784567711706",
      "type": "logicNot",
      "position": {
        "x": -127.89356269449381,
        "y": 290.07635623358306
      },
      "data": {
        "value": false,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 129
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "serialLog-1784567735471",
      "type": "serialLog",
      "position": {
        "x": 795.5940367584082,
        "y": 425.53595044866324
      },
      "data": {
        "value": 180,
        "pin": "0"
      },
      "measured": {
        "width": 172,
        "height": 125
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "pushButton-1784567745606",
      "type": "pushButton",
      "position": {
        "x": 47.5874445360199,
        "y": 432.3747508273558
      },
      "data": {
        "value": 0,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 164
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "gauge-1784568026042",
      "type": "gauge",
      "position": {
        "x": 364.2780833655803,
        "y": 296.0967045414188
      },
      "data": {
        "value": 180,
        "pin": "0",
        "max": 180
      },
      "measured": {
        "width": 326,
        "height": 294
      },
      "selected": false
    },
    {
      "id": "digitalWrite-1786161242680",
      "type": "digitalWrite",
      "position": {
        "x": -448.2374464868661,
        "y": 698.8609556358684
      },
      "data": {
        "value": true,
        "pin": "32",
        "lastStateKey": "32-true-undefined"
      },
      "measured": {
        "width": 167,
        "height": 164
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "digitalWrite-1786161375328",
      "type": "digitalWrite",
      "position": {
        "x": -192.34551242030278,
        "y": 704.28901865217
      },
      "data": {
        "value": false,
        "pin": "33",
        "lastStateKey": "33-false-undefined"
      },
      "measured": {
        "width": 167,
        "height": 164
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "logicAnd-1786161486394",
      "type": "logicAnd",
      "position": {
        "x": -449.71552287273647,
        "y": 491.840333753031
      },
      "data": {
        "value": true,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 165
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "logicAnd-1786161502331",
      "type": "logicAnd",
      "position": {
        "x": -201.75026842126596,
        "y": 481.7121983158029
      },
      "data": {
        "value": false,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 165
      },
      "selected": false,
      "dragging": false
    },
    {
      "id": "constant-1786161553081",
      "type": "constant",
      "position": {
        "x": -711.0668780889038,
        "y": 505.5566005980557
      },
      "data": {
        "value": true,
        "pin": "0"
      },
      "measured": {
        "width": 160,
        "height": 106
      },
      "selected": false,
      "dragging": false
    }
  ],
  "edges": [
    {
      "source": "counter-1784567531786",
      "sourceHandle": "default",
      "target": "servo-1784567524990",
      "targetHandle": "default",
      "id": "xy-edge__counter-1784567531786default-servo-1784567524990default"
    },
    {
      "source": "counter-1784567531786",
      "sourceHandle": "default",
      "target": "bulb-1778401238621",
      "targetHandle": "default",
      "id": "xy-edge__counter-1784567531786default-bulb-1778401238621default"
    },
    {
      "source": "squareWave-1784567550529",
      "sourceHandle": "default",
      "target": "logicAnd-1784567627934",
      "targetHandle": "in1",
      "id": "xy-edge__squareWave-1784567550529default-logicAnd-1784567627934in1"
    },
    {
      "source": "boolean-1784567643246",
      "sourceHandle": "default",
      "target": "logicAnd-1784567627934",
      "targetHandle": "in2",
      "id": "xy-edge__boolean-1784567643246default-logicAnd-1784567627934in2"
    },
    {
      "source": "squareWave-1784567550529",
      "sourceHandle": "default",
      "target": "logicAnd-1784567652206",
      "targetHandle": "in1",
      "id": "xy-edge__squareWave-1784567550529default-logicAnd-1784567652206in1"
    },
    {
      "source": "logicAnd-1784567627934",
      "sourceHandle": "default",
      "target": "counter-1784567531786",
      "targetHandle": "up",
      "id": "xy-edge__logicAnd-1784567627934default-counter-1784567531786up"
    },
    {
      "source": "logicAnd-1784567652206",
      "sourceHandle": "default",
      "target": "counter-1784567531786",
      "targetHandle": "down",
      "id": "xy-edge__logicAnd-1784567652206default-counter-1784567531786down"
    },
    {
      "source": "boolean-1784567643246",
      "sourceHandle": "default",
      "target": "logicNot-1784567711706",
      "targetHandle": "in1",
      "id": "xy-edge__boolean-1784567643246default-logicNot-1784567711706in1"
    },
    {
      "source": "logicNot-1784567711706",
      "sourceHandle": "default",
      "target": "logicAnd-1784567652206",
      "targetHandle": "in2",
      "id": "xy-edge__logicNot-1784567711706default-logicAnd-1784567652206in2"
    },
    {
      "source": "counter-1784567531786",
      "sourceHandle": "default",
      "target": "serialLog-1784567735471",
      "targetHandle": "default",
      "id": "xy-edge__counter-1784567531786default-serialLog-1784567735471default"
    },
    {
      "source": "pushButton-1784567745606",
      "sourceHandle": "default",
      "target": "counter-1784567531786",
      "targetHandle": "reset",
      "id": "xy-edge__pushButton-1784567745606default-counter-1784567531786reset"
    },
    {
      "source": "counter-1784567531786",
      "sourceHandle": "default",
      "target": "gauge-1784568026042",
      "targetHandle": "default",
      "id": "xy-edge__counter-1784567531786default-gauge-1784568026042default"
    },
    {
      "source": "logicAnd-1786161486394",
      "sourceHandle": "default",
      "target": "digitalWrite-1786161242680",
      "targetHandle": "default",
      "id": "xy-edge__logicAnd-1786161486394default-digitalWrite-1786161242680default"
    },
    {
      "source": "logicAnd-1786161502331",
      "sourceHandle": "default",
      "target": "digitalWrite-1786161375328",
      "targetHandle": "default",
      "id": "xy-edge__logicAnd-1786161502331default-digitalWrite-1786161375328default"
    },
    {
      "source": "boolean-1784567643246",
      "sourceHandle": "default",
      "target": "logicAnd-1786161486394",
      "targetHandle": "in1",
      "id": "xy-edge__boolean-1784567643246default-logicAnd-1786161486394in1"
    },
    {
      "source": "logicNot-1784567711706",
      "sourceHandle": "default",
      "target": "logicAnd-1786161502331",
      "targetHandle": "in1",
      "id": "xy-edge__logicNot-1784567711706default-logicAnd-1786161502331in1"
    },
    {
      "source": "constant-1786161553081",
      "sourceHandle": "default",
      "target": "logicAnd-1786161486394",
      "targetHandle": "in2",
      "id": "xy-edge__constant-1786161553081default-logicAnd-1786161486394in2"
    },
    {
      "source": "constant-1786161553081",
      "sourceHandle": "default",
      "target": "logicAnd-1786161502331",
      "targetHandle": "in2",
      "id": "xy-edge__constant-1786161553081default-logicAnd-1786161502331in2"
    }
  ]
}

SIAP MENCOBA MATERI INI?

Buka Arduflow IDE sekarang dan implementasikan logika program di atas tanpa ribet!
